Description

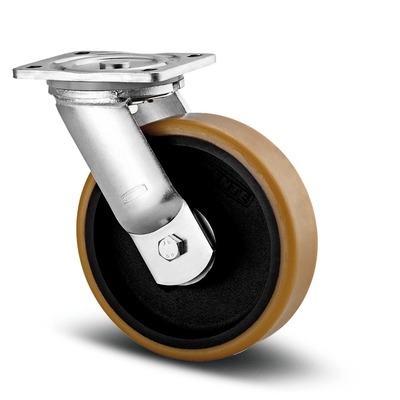

Swivel castor, housing and plate steel-welded, bright zinc plated, blue passivated, sealed single swivel double ball bearing, threaded king pin and locking nut secured, grease nipple, wheel axle with nut, plate fitting. Wheel centre made of cast iron, Tread: Polyurethane, casted, precision ball bearing
Technical Data
| Wheel diameter | 150 mm |
| Width of Tread | 50 mm |
| Size of Plate | 135 x 110 mm |
| Plate hole centres | 105 x 80/75 mm |
| Plate hole | 11 mm |
| Offset | 58 mm |
| Swivel Interference | 266 mm |
| Overall height | 200 mm |
| Load capacity | 700 kg |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12533 |
| Weight | 7 kg |
| Swivel Radius | 133 mm |
| Hardness of tread | A 92 Shore |
| Stainless | No |
| Electrical conductivity | No |
| Housing | Swivel Castors |
