Description

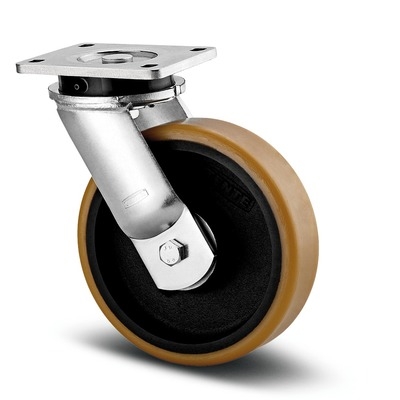

Swivel castor, housing and plate steel-welded, bright zinc plated, blue passivated, sealed swivel bearing with dual purpose bearing and tapered roller bearing, threaded king pin and locking nut secured, grease nipple, wheel axle with nut, plate fitting. Wheel centre made of cast iron, Tread: Polyurethane, casted, precision ball bearing
Technical Data
| Wheel diameter | 300 mm |
| Width of Tread | 80 mm |
| Size of Plate | 175 x 140 mm |
| Plate hole centres | 140 x 105 mm |
| Plate hole | 15 mm |
| Offset | 76 mm |
| Swivel Interference | 452 mm |
| Overall height | 355 mm |
| Load capacity | 2,000 kg |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12533 |
| Weight | 18 kg |
| Swivel Radius | 226 mm |
| Hardness of tread | A 92 Shore |
| Stainless | No |
| Electrical conductivity | No |
| Housing | Swivel Castors |
