Description

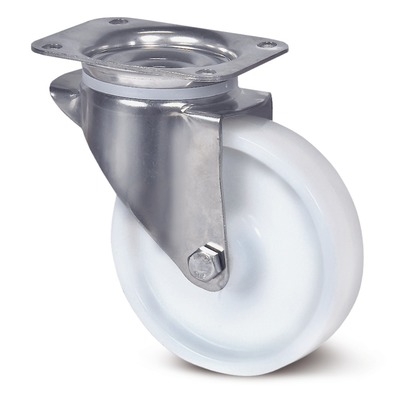

Swivel castor, Housing made of Stainless Steel, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, plain bearing
Technical Data
| Wheel diameter | 125 mm |
| Width of Tread | 40 mm |
| Size of Plate | 105 x 85 mm |
| Plate hole centres | 80/77 x 60 mm |
| Plate hole | 9 mm |
| Overall height | 155 mm |
| Load capacity | 250 kg |
| Temperature | - 40 / + 80 gradc |
| Standard | EN 12532 |
| Weight | 1 kg |
| Hardness of tread | D 75 Shore |
| Stainless | yes |
| Electrical conductivity | no |
| Swivel Interference | 205 mm |
| Offset | 40 mm |
| Swivel Radius | 103 mm |
| Housing | Swivel Castors |
