Description

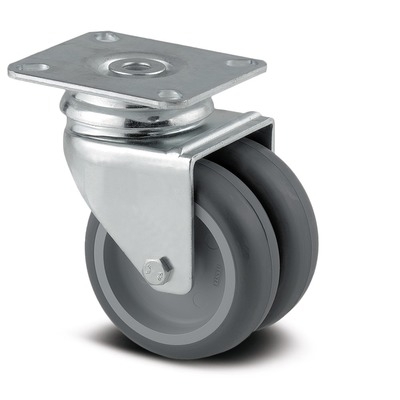

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber), grey non-marking, plain bearing.
Technical Data
| Wheel diameter | 75 mm |
| Width of Tread | 25 mm |
| Size of Plate | 77 x 67 mm |
| Plate hole centres | 61,5/56 x 51,5/46,5 mm |
| Plate hole | 8,5 mm |
| Offset | 28 mm |
| Swivel Interference | 138 mm |
| Overall height | 102 mm |
| Load capacity | 100 kg |
| Temperature | - 20 / + 60 gradc |
| Standard | EN 12530 |
| Weight | 1 kg |
| Swivel Radius | 69 mm |
| Hardness of thread | A 87 Shore |
| Stainless | no |
| Electrical conductivity | no |
| Housing | Swivel Castors |
