Description

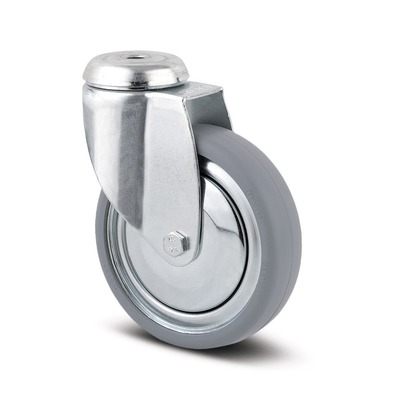

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, bolt hole. Wheel centre made of pressed steel, Tread: solid rubber, grey non-marking, with threadguards, cone ball bearing Castors can be mounted with standard screws; various length screws can be used.
Technical Data
| Wheel diameter | 125 mm |
| Width of Tread | 32 mm |
| Centre hole | 11 mm |
| Offset | 41 mm |
| Swivel Interference | 207 mm |
| Overall height | 160 mm |
| Load capacity | 100 kg |
| Temperature | - 20 / + 85 °C |
| Standard | EN 12530 |
| Weight | 1 kg |
| Swivel Radius | 104 mm |
| Hardness of tread | A 80 Shore |
| Stainless | No |
| Electrical conductivity | No |
| Housing | Swivel Castors |
