Description
・ Extremely high breakaway torque of 1400Nm.
・ It combines light weight and high power .

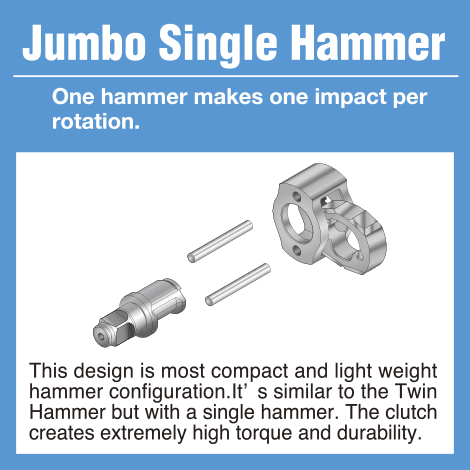

・ Strong jumbo single hammer clutch.
・ Composite motor housing for reduced vibration and temperature stability.
※Breakaway Torque refers to the tool’s ability to remove a bolt that has
been tightened down using a torque wrench. This machine can loosen a
bolt tightened to a torque of 1,400 Nm. Note that the 1,400 Nm does not
mean the actual tightening torque of SI-1460 & SI-1460SR in reverse
rotation mode. Since torque capacity is effected by many variables like
bolt type and size, thread conditions, air pressure, CFM, etc., a
comparison test can be difficult for an end user to replicate.
*Noise levels according to ISO 15744:2008,ISO 11203:2009
*Vibration level according to ISO 28927
Specification
Breakaway Torque *Nm/(ft-lb) |
1,400/(1,030) |
|---|---|
Maximum TorqueNm/(ft-lb) |
850/(627) |
Working Torque RangeNm/(ft-lb) |
0-620/(0-457) |
Free Speedr.p.m. |
(F)8,000(R)8,500 |
Weightkg/(lb) |
1.57/(3.46) |
Noise Level *dBA/(power) |
88.3/(99.3) |
Vibration a/k *m/s2 |
9.5/1.4 |
Air ConsumptionL/S |
14.43 |
Avg.Air ConsumptionCFM/(L/S) |
5.1/(2.4) |
